Ultimate Guide to Sprinter Van Conversion Layouts

May 2025 update (located at the end) includes:

1. Elevator bed layout review

2. Links to van tours for each layout

3. New pop-top on short and long vans

Brooklyn Campervans has been building bespoke custom camper vans for clients across the US. The amount of times we've had layout conversations are well over a thousand. We figured, if we're talking about it this much, why not write an article about it?!

Where to start to find the best camper van layout?

First off, if you're looking for a mobile office / cargo van hybrid, this article is not for you - we have a whole article on Mobile Offices.

To find the best camper van layouts we have to take a step back and look at the big picture. How will the majority of the time be spent using the camper van? We'll start with the biggest and most important questions first to narrow down which van to build on, then what's the best layout for van life.

Let's introduce the first step:

What size van works best for your camper van layout?

For simplicity sake and because we specialize in it, we will largely talk about the Mercedes Sprinter platform, however you can look at the size chart and translate the layouts onto Transits or Promasters.

We will be especially focused on the Sprinter 144WB and the Sprinter 170WB van conversion layouts. For the most part, extended lengths are not popular for Van Builds on all vans due to weight and drivability issues. With the extended, the wheelbase remains the same, but the back is just longer often resulting in rear end sag.

For our builds the Sprinter 144WB can offer every amenity, but the 170WB with 3.5 feet of more buildable space, can offer a lot of options.

Between these two options, 3.5 ft may seem small, but depending on what you're looking for, they can make a world of a difference. Here a few questions to help you decide.

Section 1: Who are you traveling with?

• Are you a solo traveler?

• Do you travel with your partner?

• Any pets?

• What size are they?

• Who else might come along?

• Is your camper van going to be a hang out spot for friends or are no visitors allowed?

 If you're 1-2 people traveling, you'd be great with a 144WB. If there are 3 or more people in a van, then the 170WB is the way to go. A lot of our clients are couples with pets in a 144WB. It is do-able, but if the pet is a Great Dane - consider the 170WB. Here's a whole guide on Van Life with Dogs.

Section 2: Where are you going?

• Off-roading or on paved roads?

• Cities or places where parking is easy?

• Mountains or places with no tight turns?


The 144WB is a lot more versatile driving in the city and mountains. In places like Bryce Canyon and Yosemite National Park, there are often signs saying "no vehicle over 20 feet" due to the tight turns of the switch backs. While generally you're more than fine with the powerful and well-driving Sprinter 170WB at 23 ft long, it is something still to be considered.

In the mountains or for off-roading, having a shorter wheel base, also means better turning radius and less chance of bottoming out going over humps. In the cities, a shorter van would be easier to park.

Section 3: What are you bringing with you?

• Is the camper van used for full-time travel or part-time?

• If part-time, are these trips week trips or usually 2-3 months at a time?

• Beyond the basics (clothes, kitchenware, food, laptop), what is the bulk of your storage requirements?

The 144WB Sprinter van has enough storage space for someone living full time. However if it's two people full time living together in a van and neither are minimalists plus a pet, then consider the 170WB.

Generally people underestimate how much can be packed into a 144WB. However, it also depends on what layout you go with. These questions will help further determine what layout you go with.

Which Sprinter Van Conversion Layout is best for me?

Now that you got a good feeling on which size van you want, let's look into the layout options. There are a few van conversion layouts to choose from, and something for everybody. To set the ground rules we are assuming each van layout comes with the essentials

• A (near) queen size bed

• A kitchen (sink, stove, countertop space)

• A place to work, sit or dine for 2 people (or more).

• 40 gallons of water

• Solar panels and enough battery to run the AC off-grid without worry.

• All the tech amenities, which don't really take us much space i.e. home theater, satellite internet, security systems and cameras, monitoring systems for water and battery levels and so on.

Essentially everything above can be fit into any van with any layout. You are not missing on any amenity by going with a shorter 144WB or a convertible bed layout.

144WB Sprinter Camper Van Layouts

For these layouts there are two main questions to decide

1. Do you want a fixed bed or a lounge area that converts to a bed?

2. Do you want an indoor shower or not?

The answers give way to 4 total outcomes.

Fixed Bed With Shower

Our most popular 144WB sprinter van layout. This is great to maximize storage and to enjoy the creature comfort of daily hot showers and a real mattress.

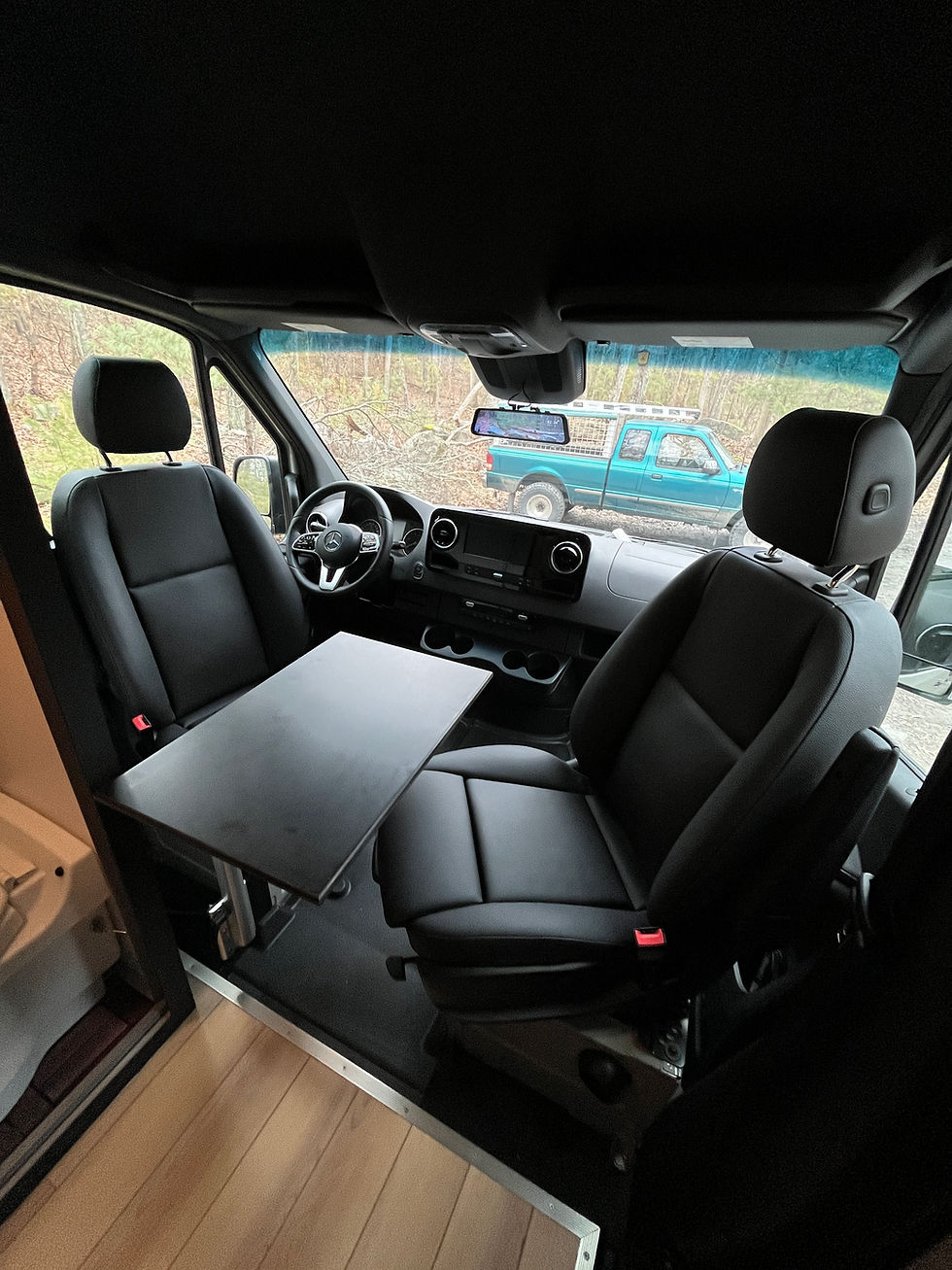

There is still a front dinette space with the front swivel seats.

Fixed Bed, No Shower

Without the shower, there's extra space for a front lounge. Under one of the lounge seats there will be your self-contained toilet. This is for people who are totally ok with taking the 15 minute drive to planet fitness or one of the many other places for showers... or just using baby wipes - no judgement!

U-Lounge With Shower

The lounge in the back can seat 5 people and coverts to bed. This layout is great for those that want to host or have more space for work / dining.

We now mostly do the raised U-Lounge to make use of the bed capsules for more sleeping space and storage underneath.

U-Lounge No Shower

We find this option more popular as a mobile office unit. Without the shower, you can have a much bigger projector screen in the front for presentations or movies.

The clients below opted for a pop-top, so this van sleeps 4.

170WB Sprinter Van Conversion Layouts

For these layouts the extra 3.5ft of buildable space allows for 2 more questions to consider compared to the 144WB.

Here are the 4 main questions to decide:

1. In the front - the space behind the driver seat, do you want a legal bench seat for 2, storage, or a lounge?

2. Do you want an indoor shower or not?

3. In the back, Do you want a fixed bed or a lounge that converts to a bed?

4. Do you want a layout with an Elevator bed? Yes, the 170WB allows for a completely different set-up.

U-Lounge + Shower + Storage space (in front)

This is a beautiful layout for those who want it all. In this van we put a full wardrobe unit behind the driver. The back is a lounge that seats 5 and can convert to a bed.

Fixed Bed + Shower + Front Dinette

The hang-out spot is switched to the front, making use of the front swivel seats. The storage space is made up with the space under the fixed bed.

The bench seats can also swivel to face the open passenger door. A different seat base can allow the seat to fold-down. Paired with the driver seat swivel, this is an option for a guest bed.

Fixed Bed + Shower + Storage

This layout is more for 2 or less travelers as there is only seating for 2. If you prioritize maximum storage, this is for you.

Fixed Bed, No Shower, + Front Lounge

If having a shower is no big deal, then might as well add more living space for lounging and enjoying the van. The table slides down and also forms a guest bed.

170WB Elevator Bed Layout

This layout needs to be built on a 170WB 3500 Dually, which means 4 tires in the back, and higher payload capacity to support the extra cabinetry.

The Elevator Bed allows for a bigger lounge underneath. It's wonderful to eat breakfast or get work done with either the door / the sliding window open with some nice views.

The overall bed dimensions are bigger too as you no longer have to fit your feet / head into the bed capsule (bed bump out). The skylight is unique in the camper van world, as it fully slides open. This means you have an unblocked view of the stars from bed. It also means you can get onto the walkable solar deck (we use marine grade panels).

The bathroom is larger and the toilet is on a slider. Sometimes it's nice that it doubles as storage / a mudroom. There's a lot more compartments for storage in this layout, but the cubic feet is around the same.

We got a lot of influence from the Concrete Oasis van and here is more of in-depth breakdown of the layout in the article "The Concrete Oasis Layout Review"

If you want to just learn more about how this layout works and costs you can go to the listing for this van or watch the video below.

Other considerations on finding the right Sprinter van conversion layout for you.

Storage - If you're worried about storage, there is always the option to add upper cabinets on the passenger side, a headliner shelf above the passenger and driver seat, and exterior storage compartments. Generally, most people underestimate the amount of things that can be packed inside a camper van. We always find people surprised at how much can fit in there.

Pop-top - Having a pop-top is another way to sleep two more people on either the 144WB or the 170WB. The new Cloud Cap Pop-Top is a gamechanger. There's no sacrifice on rooftop amenities like the

• AC

• Satellite internet

• Walkable roof deck with solar panels

The heat vent is right underneath, and we can vent the Undermount AC directly to the 2nd floor.

Extra Removable Seat Behind the Passenger

This seat is clipped into aeronautical tracks on the floor, which means the seat can also be removed. If you decide you're traveling with a 3rd person, just add it on for the trip. This was the perfect solution for the client who sometimes brought his child on trips on the 144WB.

How are these camper van layouts decided?

For a small space that can fit a shower and a 40 gallon water tank along with the many other amenities, there are really not many other choices from physical standpoint.

One safety element in the van floor plan is that we want the weight to be evenly distributed and also the electrical system on one side and the water system system on other. Mixing electronics and water is not a safe bet, nor is crisscrossing water lines back and forth.

With that being said, the water tank, water heater, sink, and shower are all on one side. The other side would include the batteries, stove, and fridge.

Can there be any more options?

Without sacrificing the amenities, it's hard to find another practical layout for a van build. If it made sense, we would've built it by now. We have some opinions about the standard mass manufactured Class B RVs with their bed lifts in the back that you can read about here.

We're also not fans of convertible indoor showers - a hotbed for mold. They're very trendy on Instagram, but if you follow experienced van builders or even mass manufacturers, they eventually moved away from those showers.

In the end we feel like the layouts listed above are the most logical for van builds. Let us know which layout is your favorite and why!

Detailed Van Tour Videos of Sprinter Layouts:

To see a list of vans with photos and summaries check out our Sprinter camper vans for sale page. Each van there has a video tour. Otherwise refer to this list:

144WB

• Fixed Bed with Shower

• U-Lounge with Shower

170WB layouts with a shower

• Fixed Bed, Front Bench Seats (plus Pop-top)

• Fixed Bed, Front Lounge and Cab Partition

• U-Lounge, Front Storage and Cab Partition

• Elevator Bed Layout




170WB Layout without a shower

• Fixed Bed, Large Lounge in front

Questions? Too much to process? Just reach out!

Finally, if you're done racking your brain, just schedule a free consultation with us, and we'll guide you in the right direction!

If you want to see how much these layouts vary in cost, or if you want to spec out your entire van online, you can use our Van Builder.
